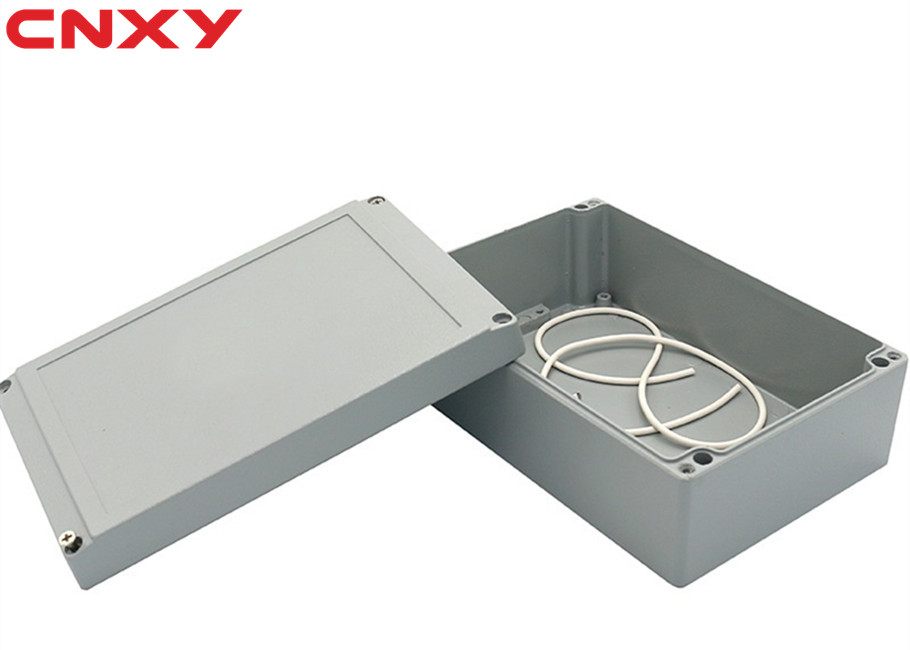

Outdoor Aluminum Junction Box , Cable Connection Box Easy Installation
Protection level :IP66
Material: Aluminium
Cover: Aluminium
Screw: metal
Color:RAL-7032
Size: mm
OEM service available: hole cutting, logo printing
Features:
Aluminum waterproof box is made from casting aluminum. suitable for all kinds of middle connector box ,terminal box .Small mechanical and electrical instrument. communications contact box equipment. It could be used in machinery ,ship ,car, production lines and other equipment of petrochemical industry and environment . With strong impact resistance. chemical resistance ,economic price, easy operation .
Sizes available.
| Model | Size |
| M4-060503 | 64*58*35 |
| M4-120805 | 120*80*55 |
| M4-120805-2 | 120*80*55 |
| M4-130805 | 135*85*56 |
| M4-120805-3 | 125*80*58 |
| M4-181207 | 188*120*78 |
| M4-181207-2 | 188*120*78 |
| M4-100605 | 100*68*50 |
| M4-221405 | 222*145*55 |
| M4-221405-2 | 222*145*55 |
| M4-221407 | 222*145*75 |
| M4-221408 | 222*145*80 |
| M4-110603 | 111*64*37 |
| M4-181405 | 180*140*55 |
| M4-090303 | 90*36*31 |
| M4-221507 | 228*150*75 |
| M4-201307 | 200*130*78 |
| M4-181308 | 185*135*85 |
| M4-221509 | 220*155*95 |
| M4-251808 | 250*185*88 |
| M4-251909 | 250*190*90 |
| M4-080706 | 80*75*60 |
| M4-170805 | 175*80*56 |
| M4-170808 | 175*80*80 |
| M4-250806 | 250*80*60 |
| M4-250808 | 250*80*80 |
| M4-110605 | 115*65*55 |
| M4-161006 | 160*100*60 |
| M4-151008 | 150*100*80 |
| M4-110905 | 115*90*58 |
| M4-110906 | 115*90*60 |
| M4-251208 | 250*120*82 |
| M4-321209 | 320*120*90 |
| M4-361609 | 360*160*95 |
| M4-101006 | 100*100*60 |
| M4-141407 | 140*140*75 |
| M4-141004 | 145*100*45 |
| M4-121208 | 120*120*82 |
| M4-161607 | 160*160*70 |
| M4-161609 | 160*160*90 |
| M4-161608 | 160*160*86 |
| M4-241607 | 240*160*75 |
| M4-241610 | 240*160*100 |
| M4-261807 | 265*185*75 |
| M4-261809 | 260*185*96 |
| M4-261812 | 260*185*128 |
| M4-302110 | 300*210*100 |
| M4-302110 | 300*210*130 |
| M4-342309 | 340*235*95 |
| M4-342312 | 340*235*120 |
| M4-342313 | 340*235*135 |
| M4-342316 | 340*235*160 |
Details:
1Screw holes with barrel,in case of sliding for frequent use
2The mounting holes at the bottom with screw thread, easy to install mounting plate, din rail, pcb boards and so on.
3Mounting plate available according to customer’s requirement
4The mounting holes at the back of box help the fixation with brackets, (some with screw thread, some without.)
Tips to ensure the effect of the IP65 waterproof:
1)Please check and make sure rubber grommet being completely filled around the lid.(The rubber grommet has elasticity. If the rubber grommet is shorter, you can stretch it to the proper length when you are installing it on the corner parts)
2)If there is any issues,please contact our
Our service:
1.Any shape hole could be drilled by laser cutter . (Grand connected for wire through)
2.Silk-screen and Laser printing could be done. (Show your company logo and name)
3.Mounting place could be done. (Install other electronic enclosure)
4.The material and color of the products could be modified as required.
5.New mould for your customized design could be accepted.
FAQ
Q:Are you a factory or trading company?
A: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q: How long is your delivery time?
A: Generally it is 2 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings,we can build the molds and fixtures.
Q: Could I put my own logo on it?
A: Sure,of course.we have many years OEM experience.customers' logo can be made by laser,engraved,embossed,transfer printing etc.
